K-SERIES INDUSTRIAL AIR CURTAIN

DESCRIPTION:

Air Guide’s K-Series Industrial Air Curtain is engineering to perform in an extra-ordinary conditions. High air velocity ensures to throw air stream at a speed that not only maintains indoor and outdoor temperature but also protects indoor environment from dust, odour, bacteria, or any other air particles to enter in indoor environment.

The all metal body makes K-series air curtain ready for industrial usage. Unique design of centrifugal fans and housing ensures that air stream is thrown at optimum level from one end to another.

Ask For Quotation

Features:

  • Air stream coverage upto 8 meters.
  • Optimal air simulation for heavy duty performance.
  • Maintain air temperature of internal environment from outside.
  • Low noise, centrifugal design ensuring high air velocity.
  • Heavy metal construction ensuring durability and reliability of fan.

Alias:

  • Industrial Air Curtain

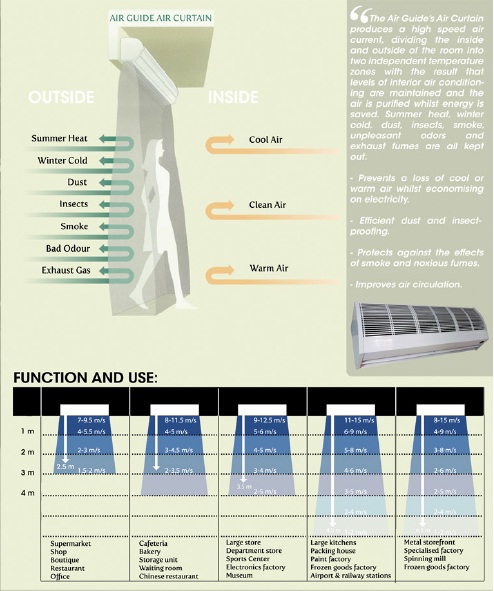

Diagram:

Technical Data:

MODELSIZEVOLTAGEPOWERAIR VOLUMEAIR VELOCITYNOISEWEIGHT
(mm)(v)(w)(m³/h)(m/s)(dB)(kg)
FM-6012GY1218 x 345 x 351380-4201600550025<6647.5
