PERFORATED PATTERN DIFFUSER (PPD)

DESCRIPTION:

Air Guide’s Perforated Pattern Diffusers (PPD) offers versatile air diffusion solutions. PPD series of air diffuser are designed for installation in architectural ceilings requiring a perforated removable face with pattern manoeuvrability. PPD-S is designed for air supply application where louvre pattern facing outward trend whereas PPD-R is designed for extraction purposes with louvre facing backward trend. PPD series is available in 4 different pattern design; namely 1, 2, 3 and 4 way.

Ask For Quotation

Features:

Material: Aluminium and GI.
Construction: Pattern is installed in louvre steps and are held by high guage spring wire. Perforated sheet is tightened with bevel shape frame hence installed with magnetic for access.
Powder Coating Colour: RAL 9010, RAL 9016 or customised.
Cores: Removable.
Optional: Opposite Blade Damper (OBD-AG).

Alias:

Perforated Pattern Diffuser
Pattern Diffuser

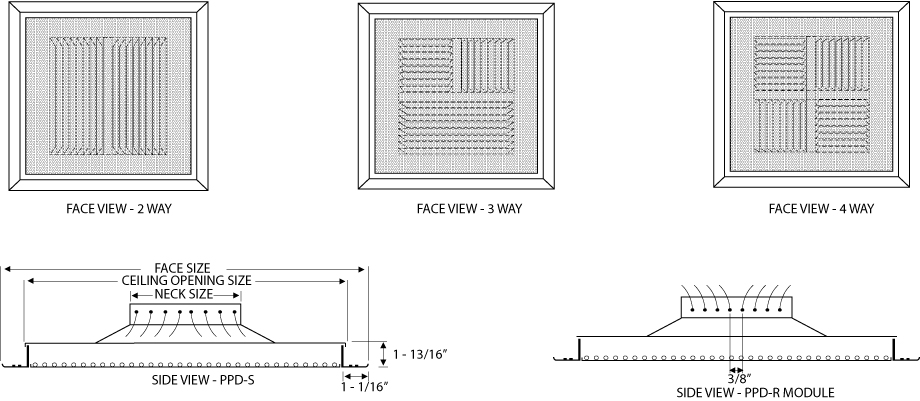

Diagram:

Technical Data:

ITEM	NECK SIZE	CEILING OPENING SIZE	FACE SIZE
PPD-S/R4	100	595	645
PPD-S/R6	150	595	645
PPD-S/R8	200	595	645
PPD-S/R10	250	595	645
PPD-S/R12	300	595	645
