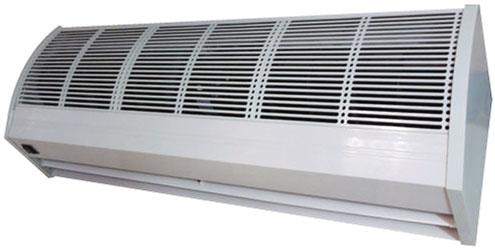

S-SERIES SLIM DESIGN AIR CURTAIN

DESCRIPTION:

Through extensive research and development Air Guide has come up with a high technology solution to air curtain for noise control. Credit to it’s full length forward curve impeller; the result is a strong and even air-flow with minimal noise disturbance.

Maintaining a constant internal environment, a comfortable
temperature is ensured whilst the air is kept fresh.

Ask For Quotation

Features:

  • Beautiful design; makes your area look elegant and powerful.
  • Energy saving, silent running operation and long quality life .
  • Maintain air temperature of internal environment from outside.
  • Best for in hotels, restaurants, pharamaceuticals, offices & showrooms.
  • ABS plastic construction of fan series; ensuring long lasting of fan.

Alias:

  • Air Curtain
  • Slim Design Air Curtain
  • Commercial Air Curtain
  • Door Curtain

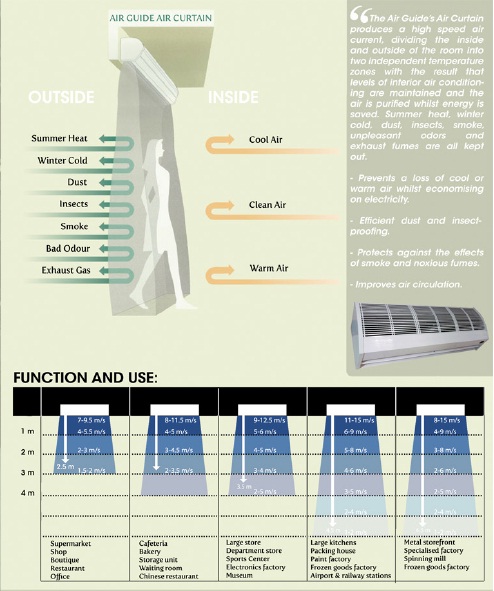

Diagram:

Technical Data:

MODELSIZEVOLTAGEPOWERAIR VOLUMEAIR VELOCITYNOISEWEIGHT
(mm)(v)(w)(m³/h)(m/s)(dB)(kg)
AGC-1509T900 x 260 x 236220-2402302500 - 190013 - 10<6212
AGC-1512T1200 x 260 x 236220-2403003500 - 280013 - 10<6414
AGC-1515T1500 x 260 x 236220-2403304450 - 340013 - 10<6616
AGC-1518T1800 x 215 x 184220-2403004600 - 380011 - 9<6015.5
