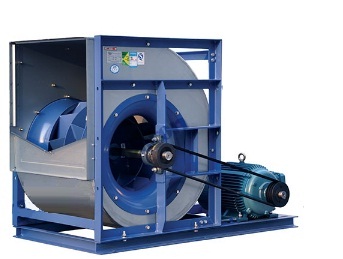

Backward Curve Cabinet Type Centrifugal Air Unit

DESCRIPTION:

AIR GUIDE's Ventilation Unit can be used in the range of 500 m³/h to 100.000 m³/h air flowcapacity, G4, G2, F7 etc. applicable as filter and production is made in different typesand sizes if desired.

ADDITIONAL INFO:
MOTOR PROTECTION CLASS:IP 55
MOTOR INSULATION CLASS:F CLASS
MOTOR EFFICIENCY CLASS:IE2-IE3
MOTOR ENCLOSURE TYPE:TEFC
MOTOR BRAND:PEM
BODY MATERIAL:GALVANIZED SHEET METAL
BODY COATING:ELECTROSTATIC POWDER PAINT
IMPELLER MATERIAL:GALVANIZED SHEET METAL
DUTY CYCLE:IEC Duty Cycle-S1
WORKING AMBIENT TEMP:-20 - +50 °C
DIRECTIVE:IEC-60335-2-80, ISO 1940-1

Features:

• Housing structure is aluminum carcass and the corners are produced as plastic andaluminum components.
• Panel thicknesses are produced as standard 25mm or optional 50mm rockwoolinsulated double skin, Electrostatic Powder Painted and Leak-proof Gasket.
• Double Inlet Radial Fans with Belt Driven Assemblies are Used inside.
• Easy installation is possible with the compact design.
• It is used for supply, exhaust or pressurization for the ventilation.Factory, Hospital, Office, Laboratory, Shopping Center (shopping malls), Cafe, Restaurants,Parking lots etc. It is suitable for use in all structures which has air duct system

Alias:

• Backward Curve Centrifugal Fan Unit
• High Static Fan Unit
• Kitchen/Smoke Exhaust Air Unit
