ACCESS GRILLE (AG)

DESCRIPTION:

Air Guide's Access Grille (AG) is widely used in application where access is required through air devices. Single (SDG), double deflection (DDG) or fixed blade grille (FBG) can be used for access purpose with frame being fixed to its place and grille could be opened from one side. Also a passage through it makes access grille of friendliest nature as it becomes easy to mount access grill into ceiling or side walls. They are made of aluminium extruded profile ensuring best reliability.

Ask For Quotation

Features:

  • Material: Aluminium extruded profile.
  • Construction: Set of individually adjustable blades held in place by high tensile spring wire.
  • Powder Coating Colour: RAL 9010, RAL 9016 or customised.
  • Cores: Removable.
  • Frame: Bevel face or louver face.
  • Optional: Opposite Blade Damper (OBD-AG)

Alias:

  • Access Grill
  • Hinged Type Grill
  • Through Gril

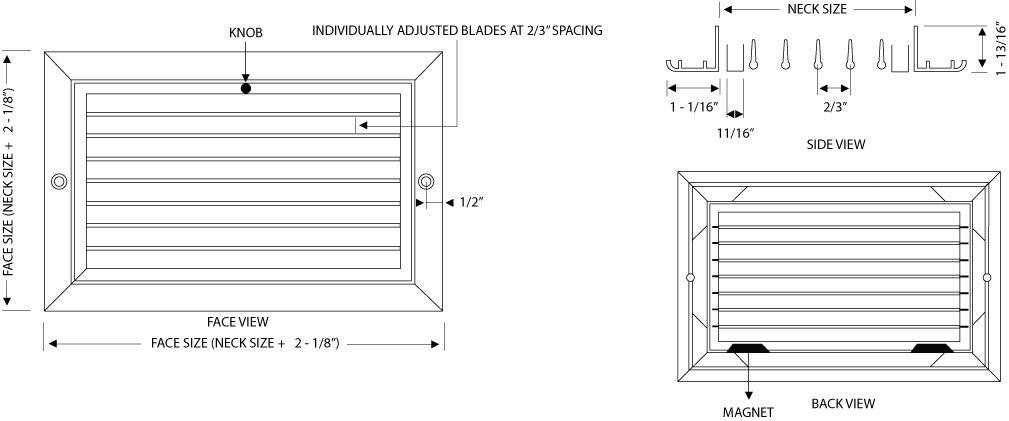

Diagram:

Technical Data:

ITEMNECK SIZEFACE SIZEHEIGHT
AG6145*145195*19545
AG8195*195245*24545
AG10245*245295*29545
AG12295*295345*34545
