WEATHER LOUVER (WL)

DESCRIPTION:

Air Guide's Weather Proof Louver / Transfer Louver / Security Louver are manufactured entirely from sturdy aluminium extrusion. These grilles are specifically designed to minimise the ingress of rainwater. Also used as security grilles to evade look-through.

Ask For Quotation

Features:

  • Material: Aluminium extruded profile.
  • Construction: Set of individually louvers held in place by comb and screw tightened on each end for stronger reliability.
  • Powder Coating Colour: RAL 9010, RAL 9016 or customised.
  • Cores: Non-removable.
  • Frame: Bevel face or louver face.
  • Optional: Opposite Blade Damper (OBD-AG).

Alias:

  • Weather Louver
  • Security Grill
  • Fresh Air Intake Louver
  • Exhaust Air Intake Louver

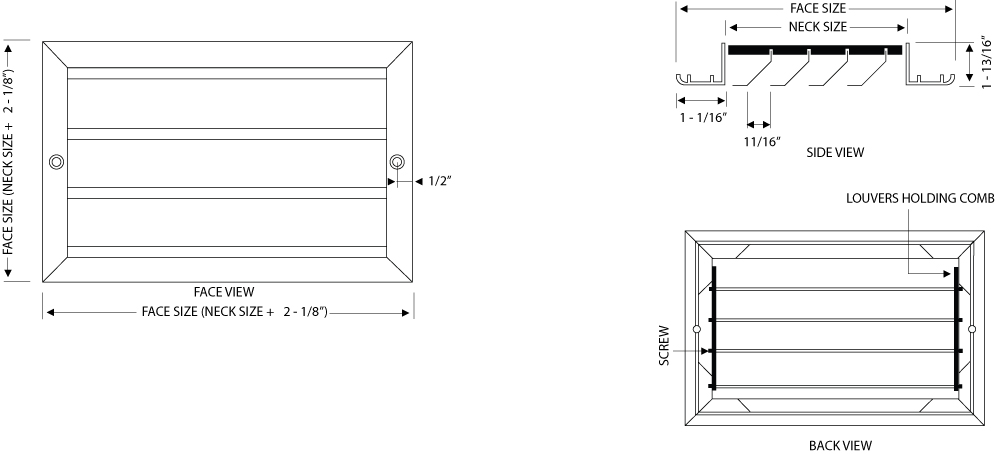

Diagram:

Technical Data:

ITEMNECK SIZEFACE SIZEHEIGHT
WL6145*145195*19545
WL8195*195245*24545
WL10245*245295*29545
WL12295*295345*34545
